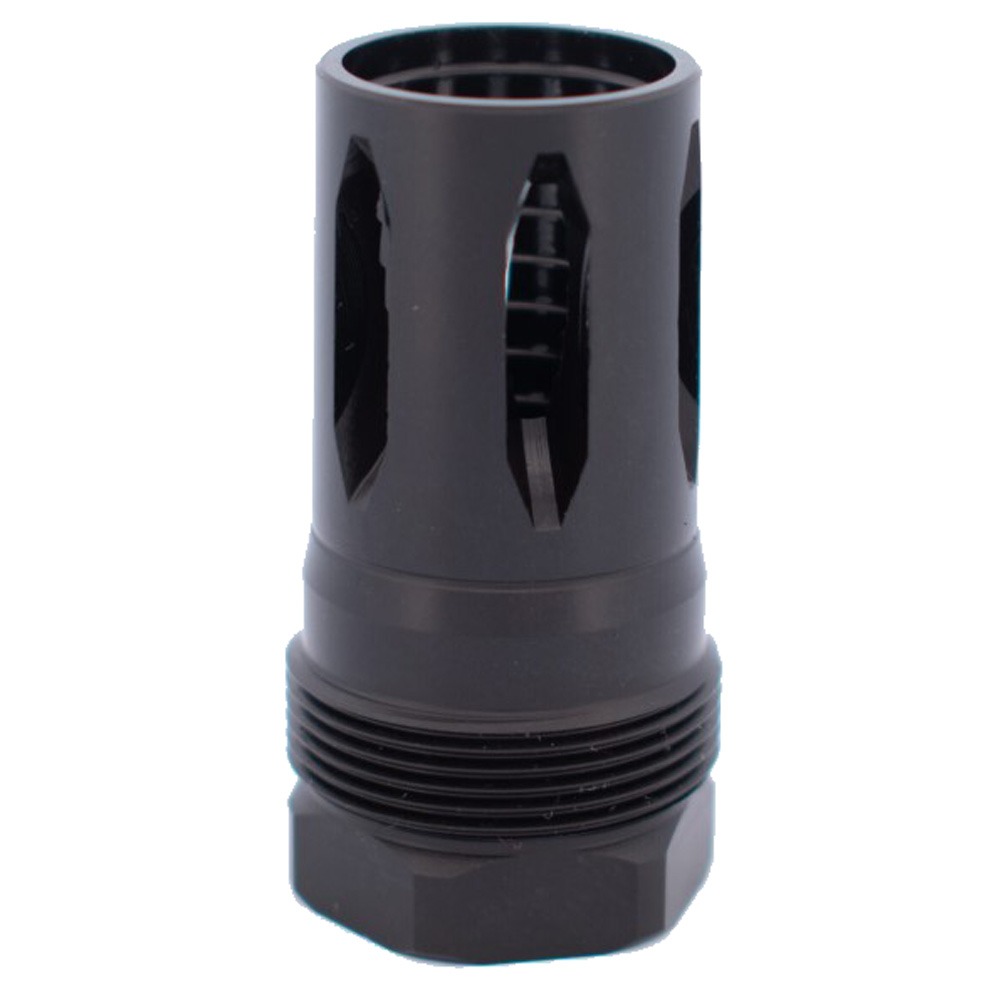

Rearden R2S 14×1 LH Facemount Nitride

$85.00

15 in stock

  • Select your desired base *

    Comstock Low-Profile Adapter Mount, Bravo + $75.00
    Comstock Titanium Low Profile Bravo Adapter + $105.00
    Rearden Atlas Bravo Mount + $85.00
    Rearden Atlas Alpha, Nitride + $85.00
    Rearden Atlas Bravo, HT + $85.00
    Rearden Atlas Charlie Nitride + $85.00
    Diligent Defense Zilch Hub Adapter + $69.00

  • Add thread protectors *

    Comstock Plan B Thread Protector + Original price was: $30.00.Current price is: $27.00.
    Rearden Thread Protector, 3D Printed + Original price was: $11.00.Current price is: $8.00.

  • Add what you need *

    VIBRA-TITE 140 High-Strength Threadlocker, Bullet Tube + $2.50
    VIBRA-TITE 121 Removable Threadlocker, Bullet Tube + $1.75
    VIBRA-TITE 90722 Anti-Seize + $1.95

Product total

Options total

Grand total

SKU: Rearden_R2S_14x1LH_10115 Categories: , , ,
Rearden

Description

  • 17-4 PH
  • Atlas and Atlas XL compatible
  • Plan B compatible
  • Black Nitride finish (67 HRC Surface hardness)
  • Shims not included, if you would like to specifically time this, shims will be required.
  • Note: your barrel may require a shim if the manufacturer did not put a thread relief on it.

Weight and Length

Thread Pitch Weight Length Length Added
1/2-28 2.05 oz 1.74″ 1.115″
1/2-28 Tapered 2.0 oz 1.74″ 0.9275″
5/8-24 Tapered 1.75 oz 1.74″ 0.9275″
5/8-24 1.6 oz 1.74″ 1.115″
14×1 LH 2.01 oz 1.74″ 1.215″
13.5×1 LH 1.8 oz 1.74″ 0.99″

These fit Plan B type mounts. Always use an alignment rod to ensure that the entire system is set up correctly. Make sure all surfaces are cleaned and the muzzle device has been torqued and Rockset to the barrel. Use on a Q can voids your warranty, be warned.

Torque the muzzle device to approximately 15-25 ft lbs. Make sure the muzzle device is square against the shoulder. When setting the silencer on the muzzle device, ensure that the threads and tapers are clean. Torque the suppressor to 10 ft lbs. Ensure alignment. Enjoy. The nitride finish does lead to a tighter seal, with that said, it is extremely important to torque and rockset your muzzle device to the barrel properly.

Brand

Rearden
